Metalla-aromatics have been defined as metallacycles that are derived from the formal replacement of a carbon atom in the framework of an organic aromatic ring with a metal fragment.[1]. Here I explore whether this simple definition can be broadened to sulfur-nitrogen rings which contain few[2],[3] if indeed any[4],[5],[6],[7] carbon atoms and which also happen to be planar aromatic molecules.

Prologue

Our story starts with the authors of this article[8] reporting the formation of the sulfur-nitrogen titanacycles 1[9] and 2[10] (green in the scheme 1 below) from Cp₂Ti(CO)₂ reacting with S₄N₄. Isolating compound 2 was something of a surprise, since they had been expecting/hoping to get 3[11] instead (red in scheme 3 below). This result was unexplained in the article and unremarked upon by anyone else since.

Scheme 1. Formed products 1 – 2 from the reaction of Cp₂Ti(CO)₂ with S₄N₄.

To develop the prologue, we start with compound 7 (Scheme 2) which was described[3] as a (Hückel-class) 10 π-aromatic ring (6e from double bonds, 4e from S lone pairs) containing one ring carbon atom and represented in the original paper as 7a. In fact, NBO7 analysis[12],[13]^‡ (as obtained with no 3-centre bonds allowed) suggests that 7b is a more accurate representation (4e from two π-double bonds and 6e from lone pairs = 10π =4n+2, n=2 ). Molecule 7b has a computed NICS(0) (= Nucleus Independent Chemical Shift at ring centroid) value of -9.6 ppm,[14] NICS here being used as an approximate indicator of aromaticity (or lack of it), with e.g. the archetypal 4n+2 (n=1) π-aromatic benzene giving a NICS(0) value of ~-10. For 4n/4n+2 aromaticity selection rules, see e.g. [15],[16]

Scheme 2. Compounds 7a/b and 7c.

A replacement of the carbon and its attached ester group according to the definition above by using (Cp.CO)Ti as a transition metal results in e.g. 7c – a compound not dissimilar to the compound discussed in the previous post[17]. A MN15L/Def2-TZVPP calculation[18] gives the geometry shown in Figure 1. A NBO7[12] localisation procedure^‡ gives the result[19] shown as 7c (Scheme 2, Figure 2), with back bonding into titanium d-orbitals and the three π-bonds and two lone pairs (one N, one S) resulting in a total of ten cyclically conjugated π-electrons.

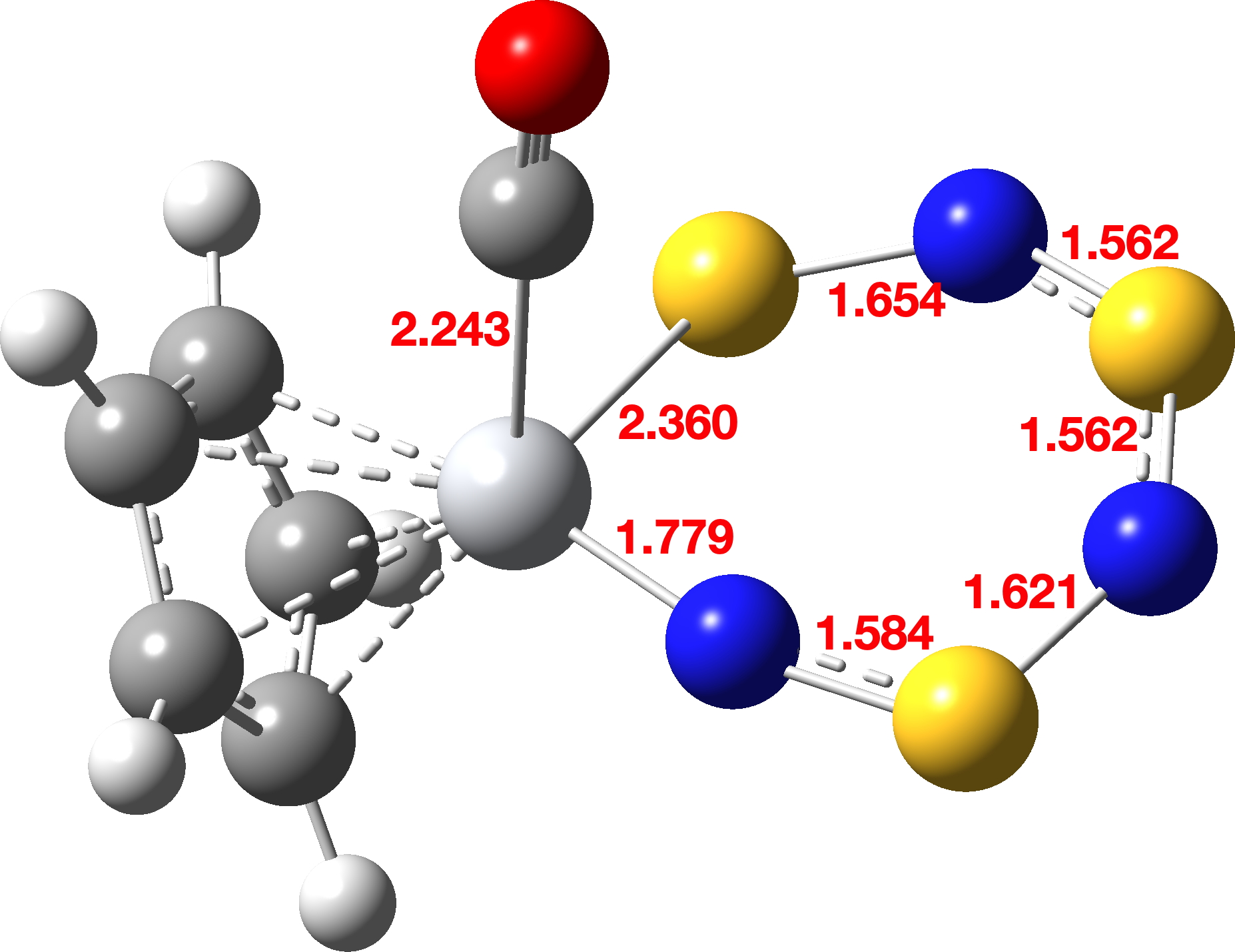

Figure 1. Calculated MN15L/Def2-TZVPP/SCRF=DCM structure of compound 7c.

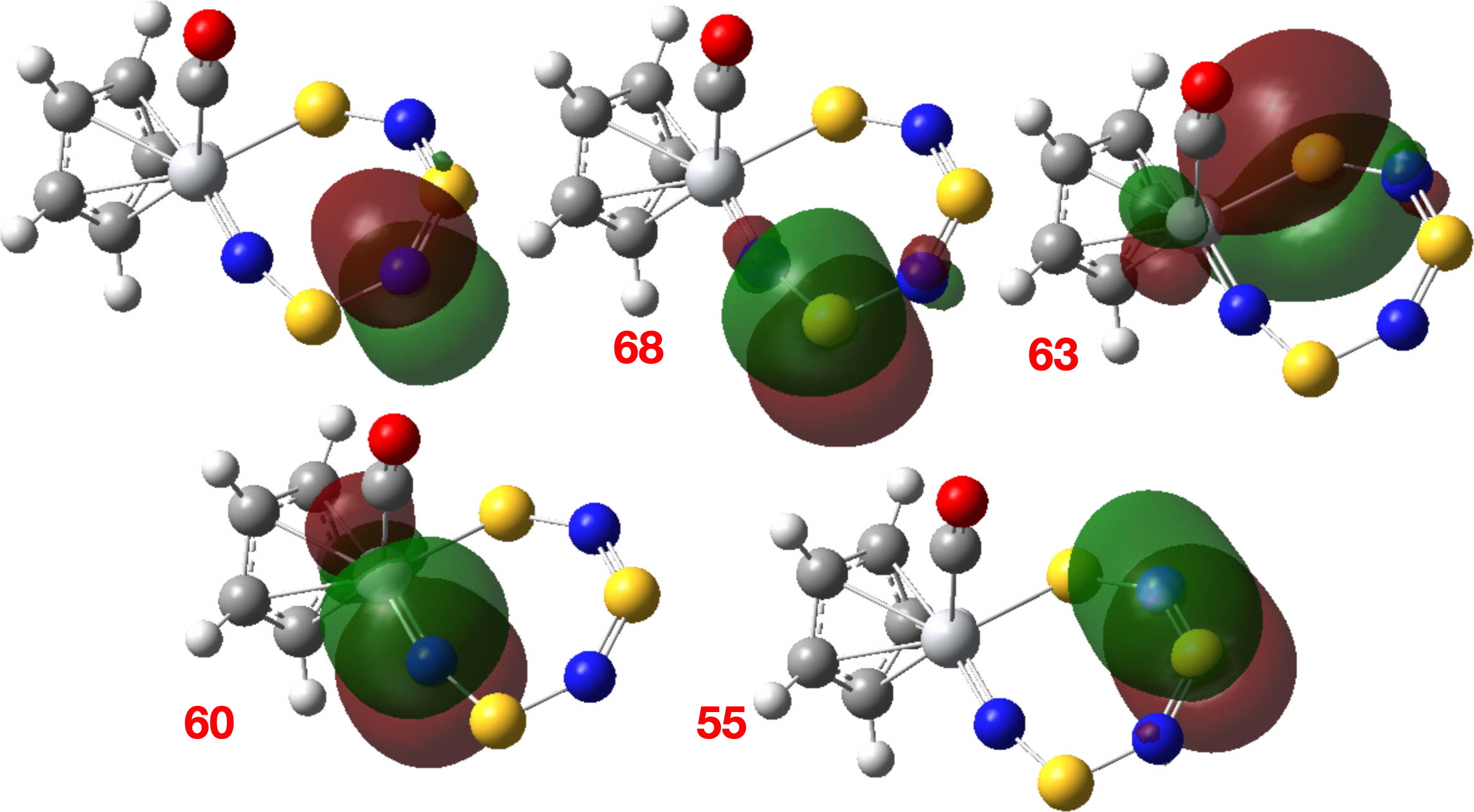

Figure 2. Five NBO7 localised orbitals representing 7c.

A NICS(0) NMR estimate of the aromaticity for 7c gives an antiaromatic value of +9.8 ppm,[20], and hence tending to Möbius antiaromaticity according to the selection rules for 4n+2 (n=2) electrons.[15],[16] This combination of 4n+2 (n=2) conjugated π-electrons and NMR-based antiaromaticity allows one to infer that there must be one orbital phase shift in the conjugated π-electrons, presumably at either the Ti=S centre or the Ti=N centre but not both. This pair of calculations provides an interesting and useful prologue to and calibration of the NICS(0) procedure as an (anti)aromaticity metric in such systems.

Discussion. Molecule 1.

CASZOL10 (molecule 1, scheme 1, Figure 3), has an NBO7^‡ Lewis localised structure[21] shown as 1a rather than the literature representation 1[8] (Scheme 1, Figure 4). As with 7c, it comprises three π-bonds and two lone pairs (one N, one S). In contrast to 7c, the NICS(0) = -6.7[22] suggests moderate aromatic character, which as a 10 π-electron aromatic must have either no phase shifts or two. It suggests that, as informed by 7c, the Ti=N bond does not contribute any phase shifts. On the basis of these results, we suggest that molecule 1 can be described as a Hückel type (4n+2) moderately aromatic inorganic metallacycle.

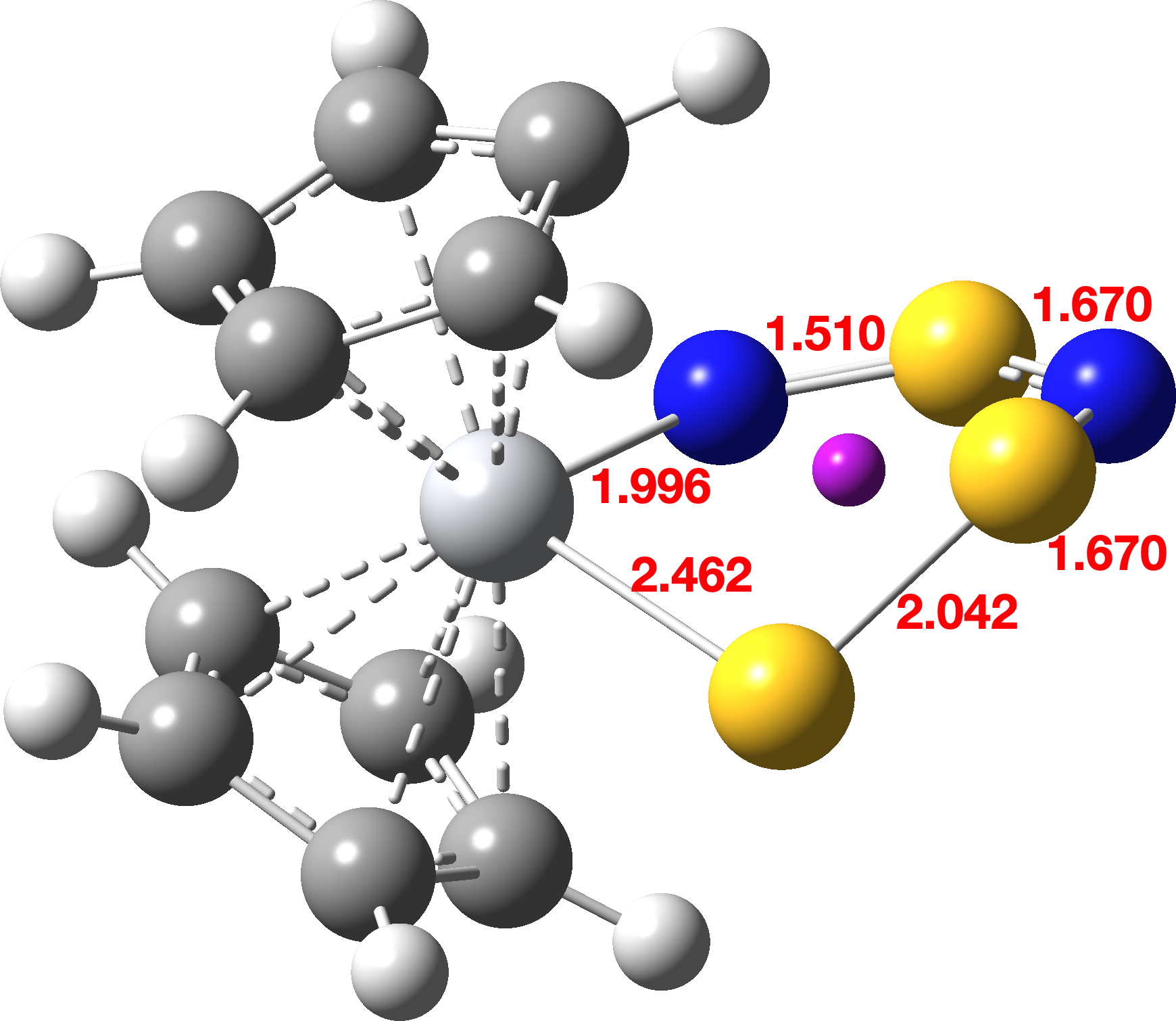

Figure 3. Calculated structure of 1, CASZOL10. The purple point is the NICS probe.

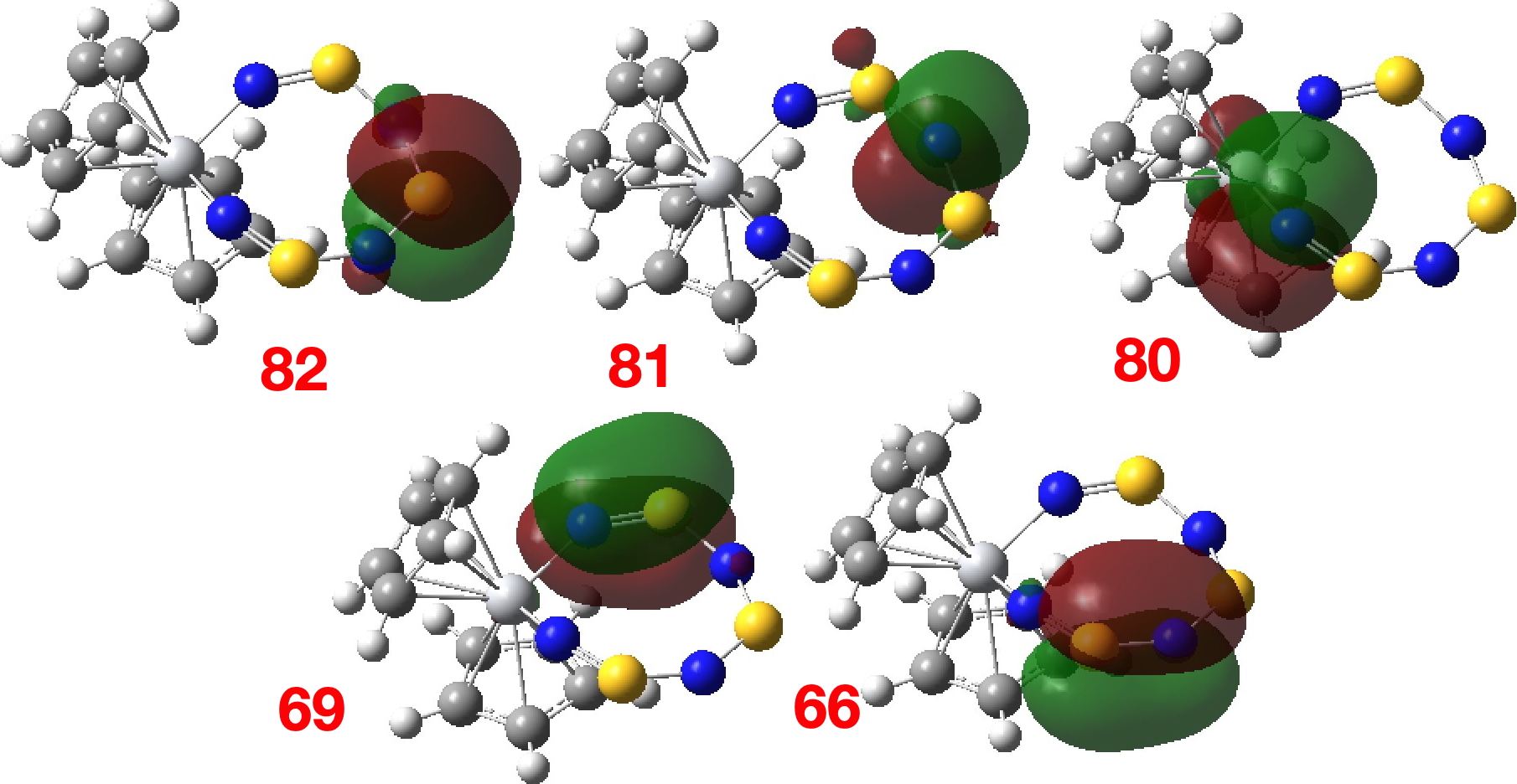

Figure 4. Five NBO7 localised orbitals representing 1a (total NBO7 orbital occupancy 8.39e)

Discussion. Molecule 2.

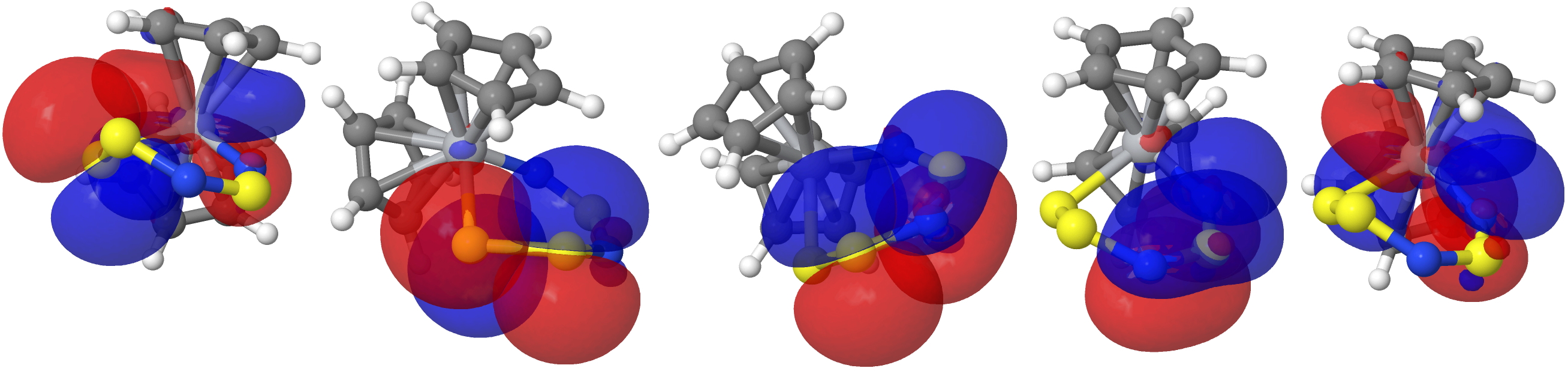

Molecule 2 (CIWFIX10, Figure 5) has NICS(0) = -6.0 ppm[23] for 8π electrons (one NBO7 double bond and three NBO7 lone pairs[24]) represented as 2a in scheme 1 (Figure 5).

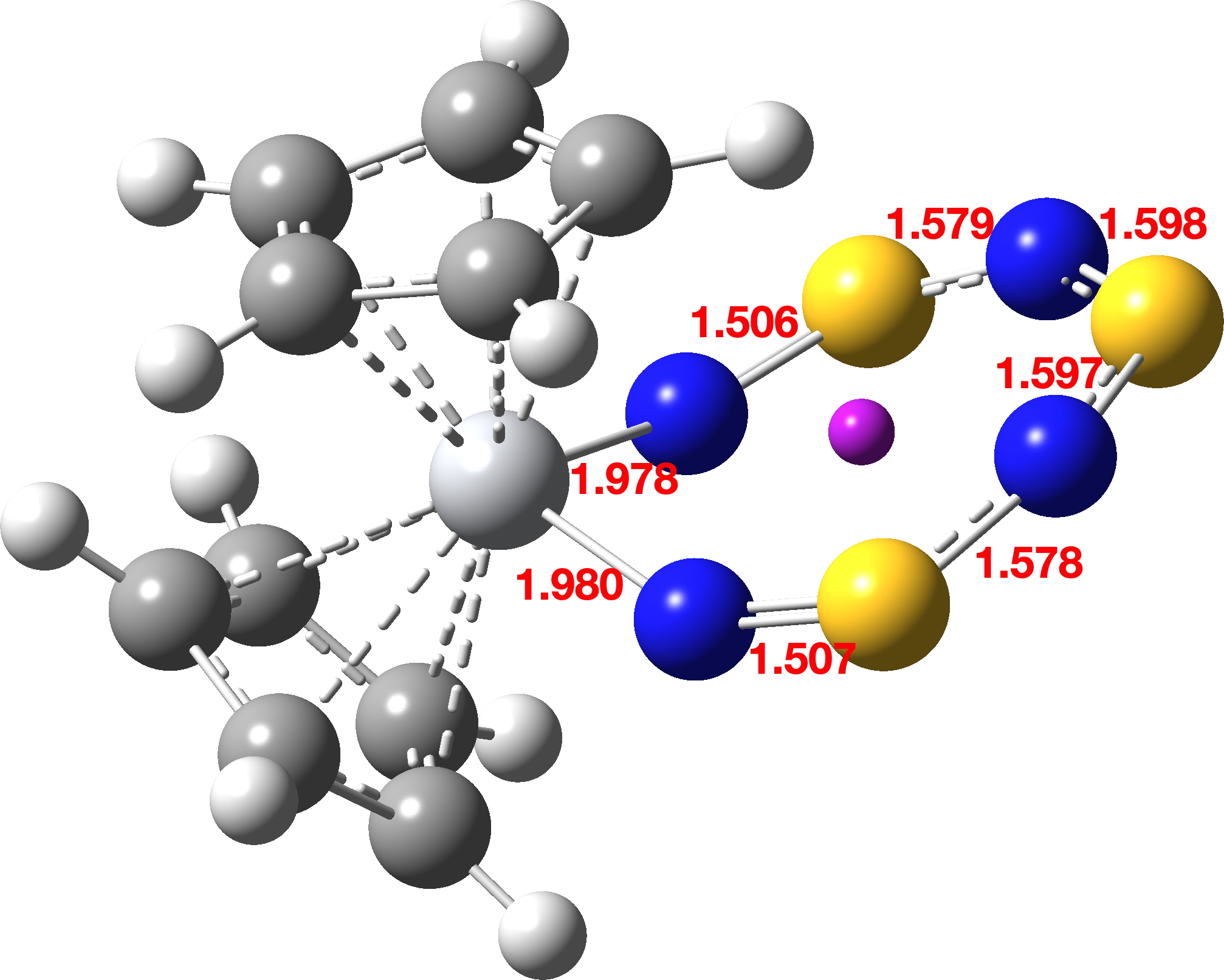

Figure 5. Structure of 2, CIWFIX10. The purple point is the NICS atom.

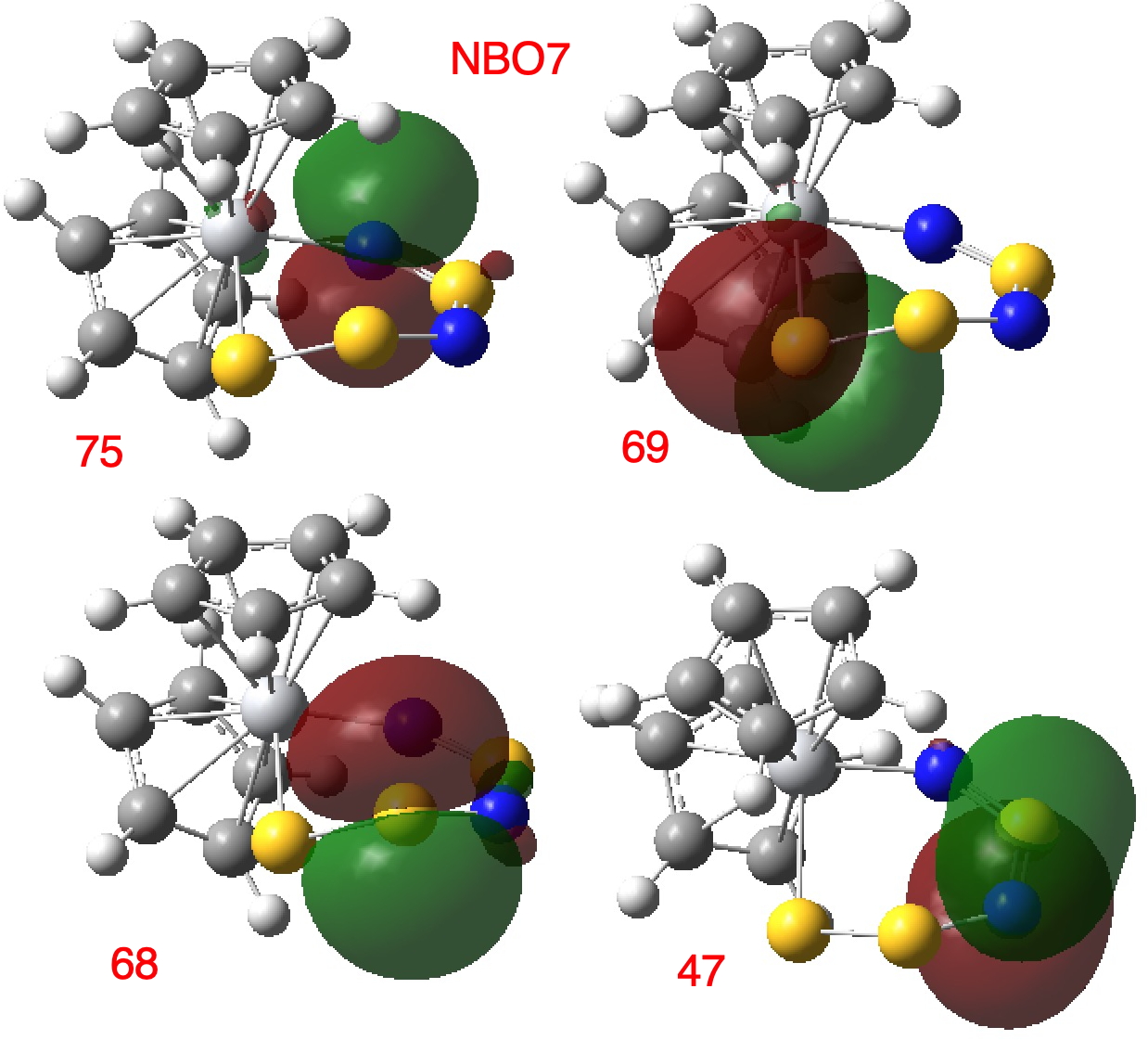

Figure 6. Four NBO7 localised orbitals representing 2b (total NBO orbital occupancy 6.92e).

The moderate NMR-based aromaticity for a 4n (n=2) electron cycle implies Möbius character, [15],[16] whereby significant twisting of the adjacent sulfur-nitrogen ring orbitals allows a phase shift to occur via an unoccupied Ti d-orbital (Figure 7).

Discussion. Unformed Compounds (Scheme3).

Scheme 3. Unformed compounds 3–6 from the reaction shown in Scheme 1.

Compounds 3-6 are all computed as higher in free energy than 2. Compound 3a (mysteriously not formed in the original report[8]) is +13.7 kcal/mol higher than 2, and clearly non-aromatic (NICS(0) = -0.29 ppm).  This may be because the ring is relatively flat and not capable of the twisting required to become Möbius aromatic, something that was possible in 2.[25],[26],[27] Compound 4 (orange in scheme) is interesting since it is only 3.9 kcal/mol higher than 2 and having 8π electrons (two bonds, two lone pairs) has a NICS(0) of -8.4 ppm[28] appropriate for a Möbius metallaaromatic and again has a ring capable of the required twisting as per 2. It might be synthesizable if formed by a different method.

Conclusions

Both 1 and 2 are suggested here as examples of inorganic metallaaromatics, respectively of the Hückel and Möbius type,[15],[16] and uniquely with no carbon atoms present in the aromatic ring – a hitherto unrecognised class of aromatic molecule. We here argue that the non-formation of compound 3 as indicated in original article[8] is because it is non-metalla-aromatic, and in its place compound 2 is formed precisely because it IS likely to be metalla-aromatic. It is our expectation that many more such inorganic metalla-aromatics could exist.

^‡Use of the older NBO3 procedure is deprecated here, since it is prone to converging for these types of systems to unphysical solutions. We have established that the essential character of the NBO7 orbitals does not depend on the quality of the basis set used[29] or the DFT procedure (albeit tested only for one additional functional, ωB97XD[30],[31]).

This post has DOI: 10.59350/dsyea-mrq85
