As pointed out in the introduction, the objective for producing U-shaped cavity systems has been associated with projects involving host-guest complexation and nanotechnology. Accordingly, we have targeted the production of bis-porphyrins and bis-(crown ethers) as receptor sites for our guest molecules. In this presentation, I will present our work on the production of bis(crown ethers) emphasising the methodology used in their construction rather than their application.

In order to emphasise the methodology, we have classified approaches to the cavity systems in terms of those that involve attachment of walls to existing short-walled systems using ACE or related BLOCK techniques to achieve this goal (Figure 9).

Figure 9

A further driving force in selecting this approach, has been the range of short-walled bis-alkenes available to this program (Figure 10), all of which have all been described in the literature. Molecular modelling confirms the regular graduation in the relative orientation of the p-bonds.

Figure 10

ACE reaction of the naphthalene functionalised cyclobutene epoxide BLOCK 1 with the dihydroxy bis-alkene 77 gave the cavity systems 81 without incident (Scheme 24). This reaction could be achieved under either thermal conditions (DGM, 140 oC, sealed tube) or photochemically (acetone, Rayonet reactor, 300 nm). The structure of the cavity system 81 was confirmed by NMR spectroscopy, where the simplicity of the spectrum was in harmony with the C2v symmetry of the product. Separate nOe experiments confirmed that the expected exo,exo-stereoselectivity had occurred in the coupling step leading to this cavity system.

Scheme 24

Molecular modelling studies show that the geometry of the starting short-walled bis-alkenes 76-80 were not good guides to the geometry of the final cavity systems 82-86. For example, modelling of the starting dihydroxy bis-alkene 78 (Figure 10) indicates that the walls are roughly parallel, whereas the modelling of the final product 84 (Figure 11) indicates that the walls are decidedly convergent. Indeed, to obtain a cavity product in this series with parallel walls, eg 86 (Figure 12), molecular modelling shows that it is necessary to start from the short-walled bis-alkene 80 with divergent walls.

These conclusions are based on molecular modelling results and we are currently seeking X-Ray crystallographic evidence to support this.

Figure 11

Figure 12

Heating the bis-alkene 76 with the cyclobutene epoxide 34 produced the 1:2 cycloadduct 83 in good yield (Scheme 25). The convergent U-shaped geometry present in 7 resulted from the stereospecific exo,exo-coupling characteristic of the ACE­coupling procedure and was confirmed by NMR spectroscopy. The high symmetry of product 83 was typified, inter alia, by the single resonance of the four benzylic bridgehead protons Hc at d 5.15 and the single resonance for the ester methyl groups (d 3.95). The stereochemistry was fully defined by the presence of a nOe between protons Hb and Ha which establishes their proximity as required for the proposed exo, exo-geometry.

Scheme 25

This effect of wall convergency manifested itself when the same bis-alkene 76 was reacted with the crown ether containing cyclobutene epoxide 87. Here, reaction stopped after the addition of only one equivalent of the BLOCK to produce the monocrown 90 (Scheme 26). We believe that this indicates strong steric interaction between the terminal crown ether units occurs in the transition state for bis-crown formation, and this is supported by modelling of the transition state for ACE cycloaddition onto the p-bond of bis-alkene 76, which is shown in Figure 13a, Section 5. This premise finds experimental support from the reaction of 1:1-adduct 90, which still contains a single p-bond, with the smaller cyclobutene epoxide 34 which yielded the unsymmetrically substituted cavity system 91. Molecular modelling of the transition state for a similar addition to the more open bis-alkene 79 are shown in Figure 14a (Section 5) and indicated that crown ether cavity formation should proceed. The experimental verification is yet to be conducted.

Scheme 26

We have also investigated the more open bis-alkene 80 and its B-BLOCK derivatives 93 and 95 as ACE reagents (Scheme 27) for cavity formation.

Scheme 27

As a way of further developing our ability to make unsymmetrically-walled cavity structures, we have used the mono-cyclobutene epoxide 93 as the prototype AB-BLOCK which contains both A and B types of end-group.

This type of AB-BLOCK can be utilised in two ways:

a) it can be reacted in sequence with an alkene A-BLOCK followed by a cyclobutene epoxide B-BLOCK (or vice versa) to produce a cavity structure which contains the same or different wall units.

b) following reaction with an alkene A-BLOCK to produce the single-walled product, the remaining alkene present can be elaborated to a new cyclobutene epoxide and reacted with a second alkene A-BLOCK.

Each of these protocols has been explored and shown to be viable.

The viability of protocol a) to form cavity systems with different wall units is confirmed by reaction of 96 with cyclobutene epoxide 1 to furnish cavity 99, identical with that produced via protocol b).

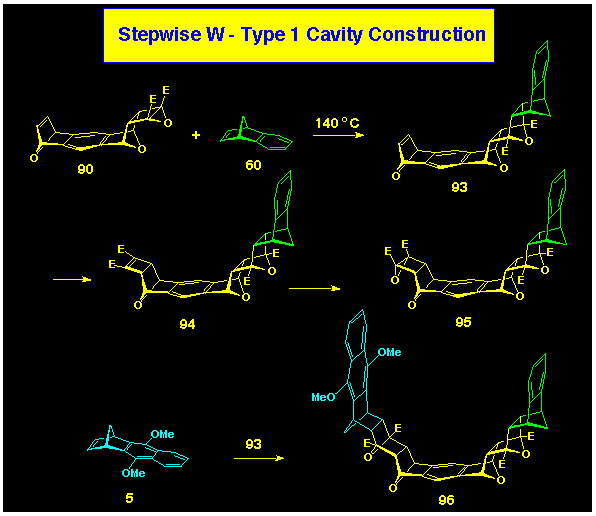

Protocol b) is illustrated by the reaction of the epoxide linking point in 93 with benzonorbornadiene to produce the L-shaped product 96. Elaboration of the norbornene p-bond in 96 follows standard lines to produce cyclobutene 97 which yields the new epoxide 98 upon epoxidation. Coupling of 98 with naphthonorbornadiene 5 yielded the cavity system 99.

Scheme 28

Direct ACE coupling of B-BLOCK 1 with bis-alkene 80 can be used to prepare the naphthalene-walled cavity system 100.

Scheme 29

The symmetrical cavity system 86 has been produced from reaction of benzonorbornadiene 60 with the bis-(cyclobutene epoxide) 95 to form the parallel-walled product 86 using the reverse assembly protocol where the wall units are supplied as the A-BLOCK component (Scheme 30). The same protocol can be applied to the anti-isomer of the bis-epoxide 101 to produce the stretched variant 102 where the walls are still parallel, but anti-related about the benzenoid base.

Scheme 30

The s-tetrazine coupling route to cavity bis(crown ethers) has also been explored, since molecular modelling of the transition state (see Figure 13, Section 5) for the second, Diels-Alder cycloadditions in the C17 bis-alkene 79 has the crown ether components well separated, thereby avoiding the steric crowding observed in the inward-facing bis-alkene 76 (Scheme 26). Satisfyingly, the reaction of the bis(dihydropyridazine) 102 formed by reaction of 79 with 3,6-di(2-pyridyl) s-tetrazine 103 in the presence of triethylamine, (see Scheme 31 for preparation) with the crown benzonorbornadiene 83 yielded the cavity bis(crown ether) 105 (Scheme 32).

Scheme 31

Scheme 32

This simple entry to U-shaped bis-crowns complements our earlier report to such compounds utilising a Diels-Alder cycloaddition of crown isobenzofuran 104 directly onto the bis-alkene 30 which produced the cavity crown 107 admixed with its L-shaped isomer 108, see Scheme 33. This methodology is restricted to 7-oxanorbornene compounds in order to achieve the required exo, endo-stereoselectivity and is consequently less versatile than the BLOCK coupling procedure. In addition, it is not suitable for the clean production of unsymmetrical systems.

Scheme 33
